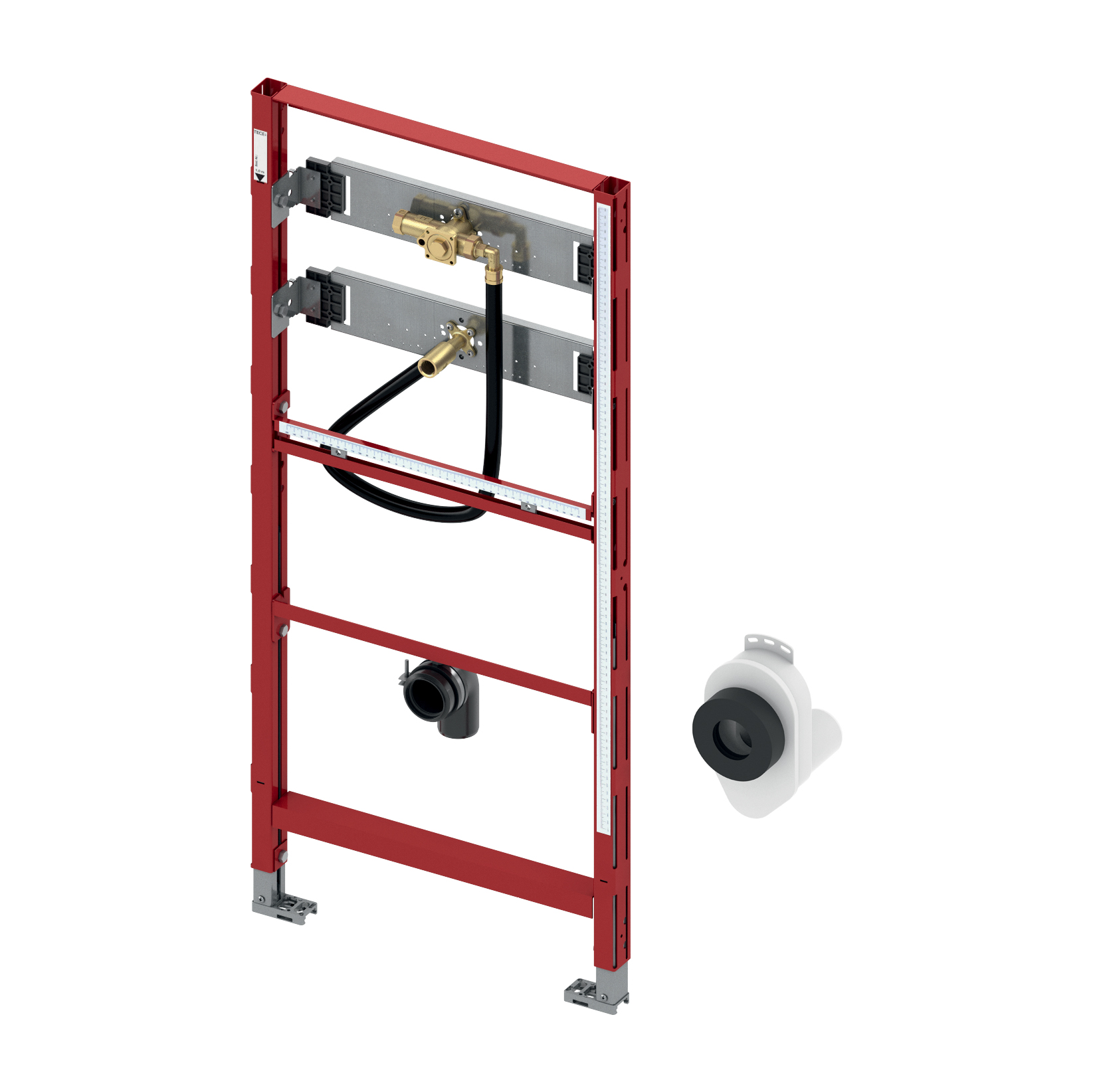

TECEPROFIL URINAL CONCEALED FRAME – WITH TECE FLUSHER HOUSING U 1 – INSTALLATION HEIGHT 1120 MM

Urinal module to accommodate manual and electronic actuation systems. Suitable for mounting to TECEprofil section tubes, or for installation in metal or wooden stud walls, as a pre-wall or corner module.

Completely pre-assembled unit, consisting of:

• TECE urinal flush valve housing U 1 with inlet flow control and bare-wall protection system
• Connection Rp 1/2″
• Two adjustable foot supports for floor projections 0–200 mm
• Two M8 retaining bolts
• Continuously adjustable fixing rails
• Continuously height-adjustable drain connection
• Connection elbow DN 50 including protective plugs
• Mounting material for urinal
• Inlet fitting 1/2″
• Flush-mounted siphon

Please order separately:

• Manual actuation or electronic actuation (TECEsquare, TECEloop, TECEsolid, TECEplanus urinal electronic and TECEnow)
• Attachment for individual pre-wall, corner or wooden stud wall assembly
