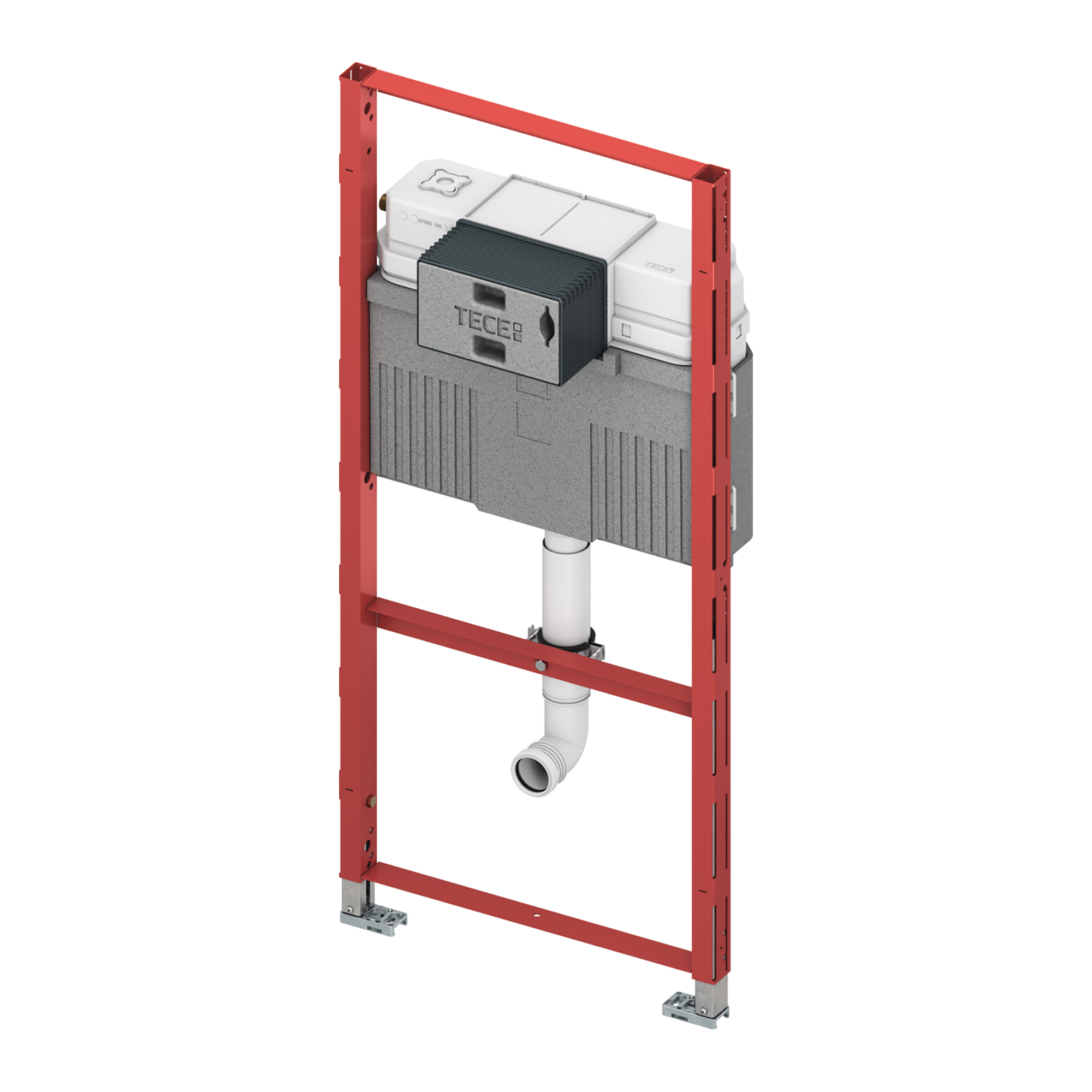

TECEPROFIL WC-INBOUWFRAME MET UNI-SPOELKAST VOOR STAAND TOILET – BOUWHOOGTE 1120 MM

Toilet module including “easy fit” plaque de commande installation. Suitable for
fitting to TECEprofil section tubes ou pour installation dans des cloisons à ossature métallique ou bois,
and usable as a pre-wall or corner module. Also suitable for single block assembly.

Uni cistern for front actuation:

• Safety tank made of impact-resistant plastic, tested to EN 14055
• Réservoir entièrement pré-assemblé and sealed
• Raccordement du réservoir avec filetage extérieur R 1/2″ at the side, compatible with quick adapters
• 10 litre tank volume; 6 litre pre-set standard flush volume;
  4.5 / 7.5 / 9 litre volume de chasse réglable at any time; 3 litre partial
  flush for dual-flush systems; remaining volume available for immediate cleaning flush
• Insulated against condensation water
• For TECE plaque de commandes and toilet flush handle
• Can be used as a single- or dual-flush cistern
• “Easy fit” plaque de commande installation
• Installation tunnel for service opening, can be shortened without tools
• Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109
• Flush flow control adjustable without removing the drain valve

Module frame:

• Self-supporting, powder-coated frame
