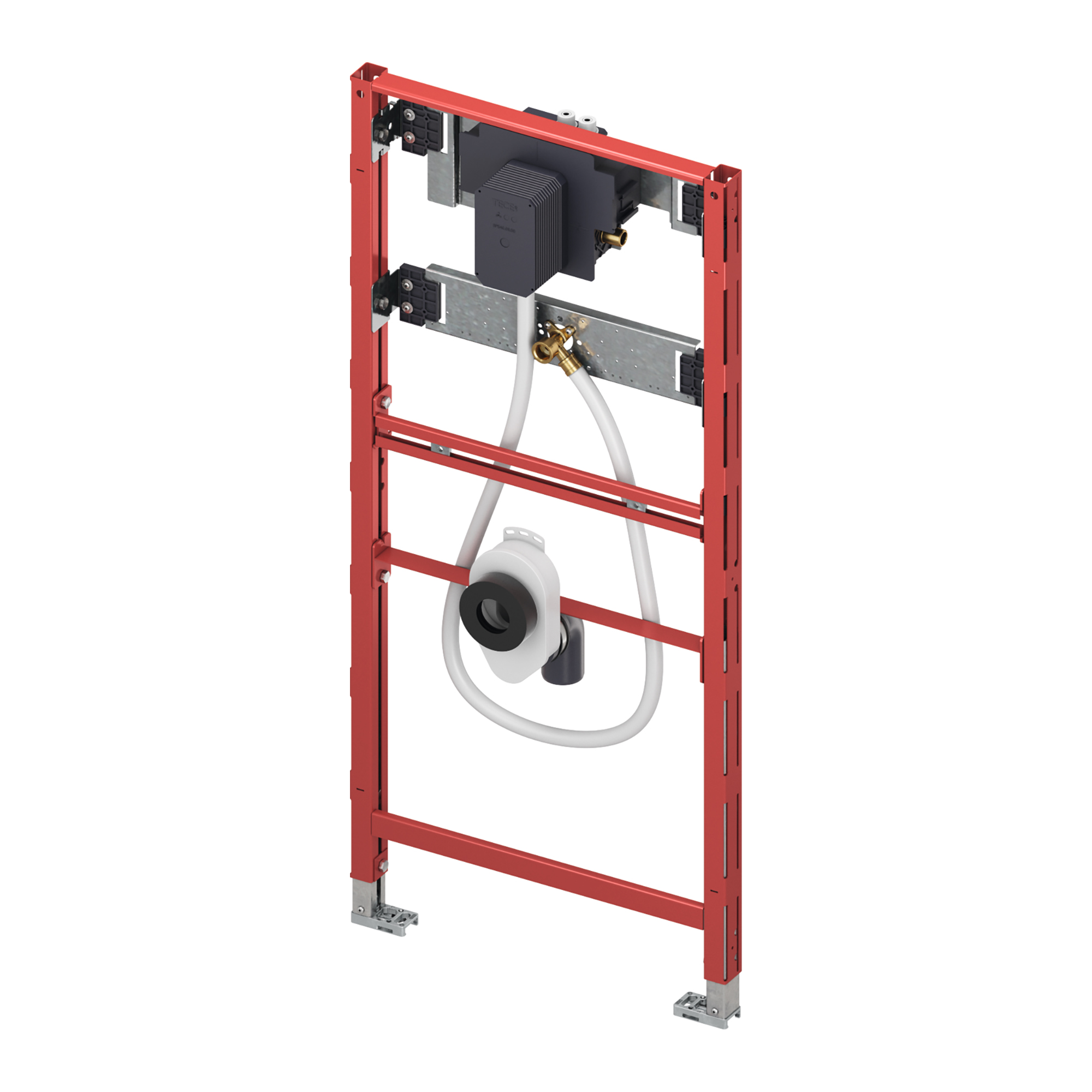

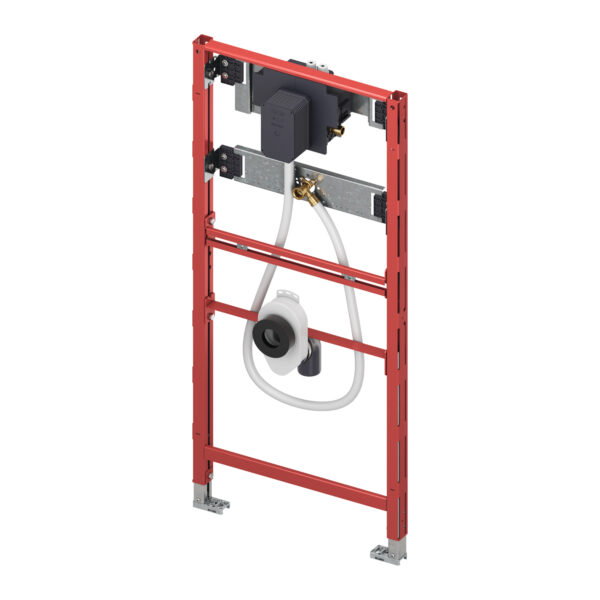

TECEPROFIL URINOIR-INBOUWFRAME MET TECE DRUKSPOELERBEHUIZING U 2 – BOUWHOOGTE 1120 MM – INCL. STANKAFSLUITER

The Module urinoir is designed for combination with the
TECEfilo valve unit and Façade de capteur.
It is suitable for fixing to TECEprofil section tubes
or for installation in metal or wooden stud-and-beam walls,
and can be used as a pre-wall or corner module.

This is a completely pre-assembled unit, ensuring quick, reliable
and precise installation.

Completely pre-assembled unit, consisting of:

• TECE urinal flush valve housing U 2 with inlet flow control and bare-wall protection system
• Integrated 230 V / 12 V transformer for direct 230 V connection
• Connection IG 1/2″
• Two adjustable foot supports for floor projections of 0–200 mm
• Installation depth: 75 mm
• Two M8 retaining bolts
• Continuously adjustable fixing rails
• Continuously height-adjustable drain connection
• Connection elbow DN 50 including building protection plug
• Mounting material for urinal
• Inlet fitting 1/2″
• Odour trap 50 mm

Please order separately:

• TECEfilo valve unit (see urinal plaque de commandes)
• TECEfilo Façade de capteur (see urinal plaque de commandes)
• Fixing for pre-wall, corner or wooden stud installation

* Not suitable for semi-recessed urinals.
